SDL Tridion Visual Studio Razor Extension is a VSIX extension for Microsoft Visual Studio that makes possible to work with Razor Mediator code.

Main functionality

• Edit razor code for Razor Mediator TBBs
• Synchronize *.cshtml files with Tridion TBBs
• Debug *.cshtml files
• Create Tridion Component Templates and Page Templates from Visual Studio automatically

Prerequisites

• Microsoft Visual Studio 2015
• SDL Tridion 2013 SP1 or SDL Web 8 with Razor Mediator 1.3.X


Downloads

https://drive.google.com/folderview?id=0B6hZ-cambftrV25ZLU5QTnJWSmM&usp=sharing#list

Source Code

https://github.com/mvlasenko/TridionVSRazorExtension

Installation

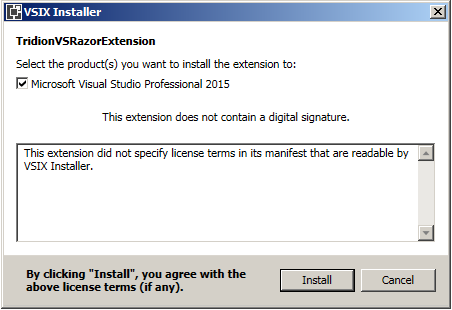

1. Run TridionVSRazorExtension.vsix

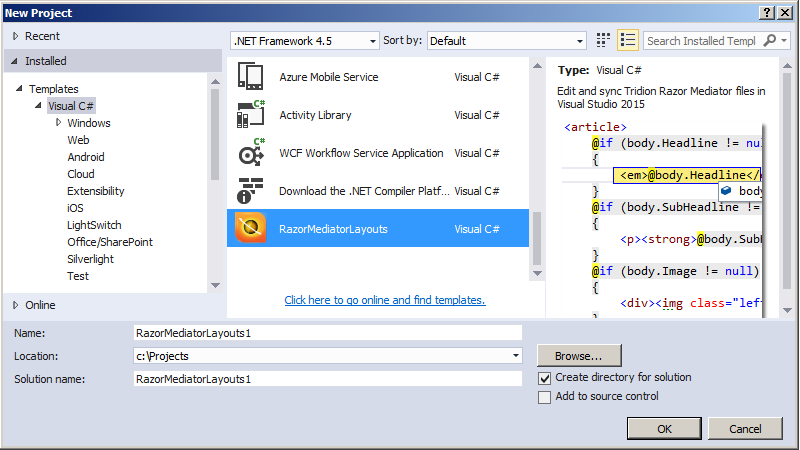

2. Create a new project based on RazorMediatorLayouts template

Your new project looks like next

In Tools menu you have the option Tridion Razor Extension

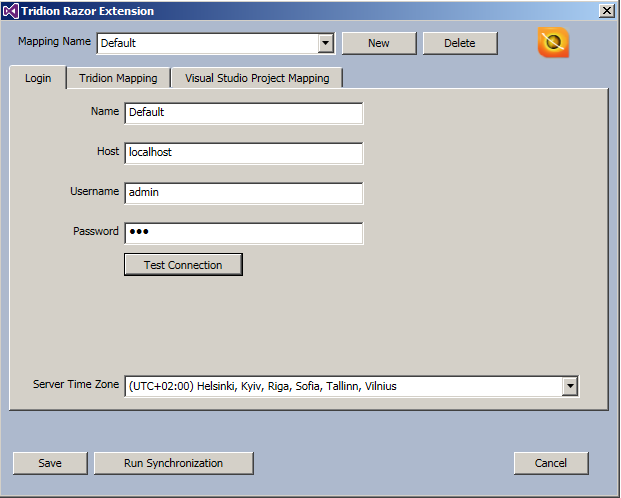

3. You can use the dialog window for adjusting VS / TCM mapping and running VS / TCM synchronization

4. You can use context menu on file or folder in Solution Explorer to run VS / TCM synchronization

Mapping

* All mapping info is stored in TridionRazorMapping.xml file in the project root.

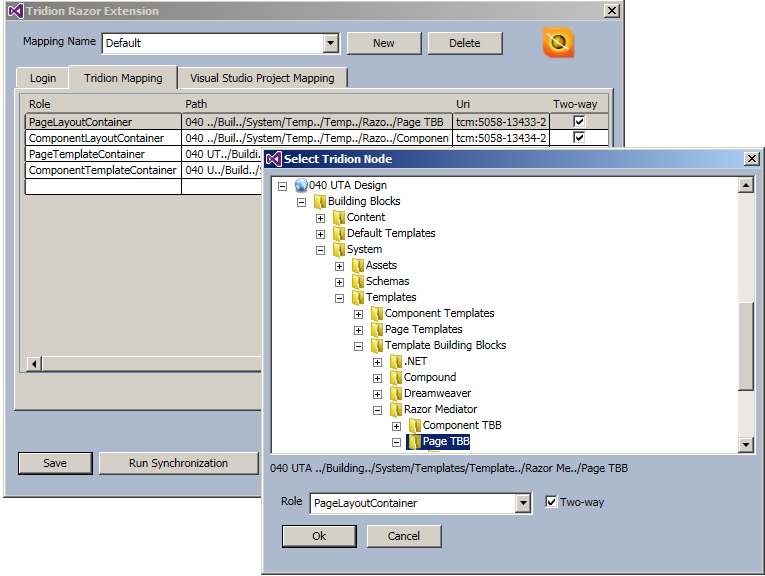

TCM mapping

Select folders on TCM side.

Every Tridion folder must have one of the following roles:

• PageLayoutContainer. Folder that contains Razor Mediator TBBs for page layouts.
• ComponentLayoutContainer. Folder that contains Razor Mediator TBBs for components.
• PageTemplateContainer. Folder that contains Page Templates.
• ComponentTemplateContainer. Folder that contains Component Templates.

By default synchronization works only in VS -> TCM direction. To enable two-way synchronization, please use Two-way checkbox.

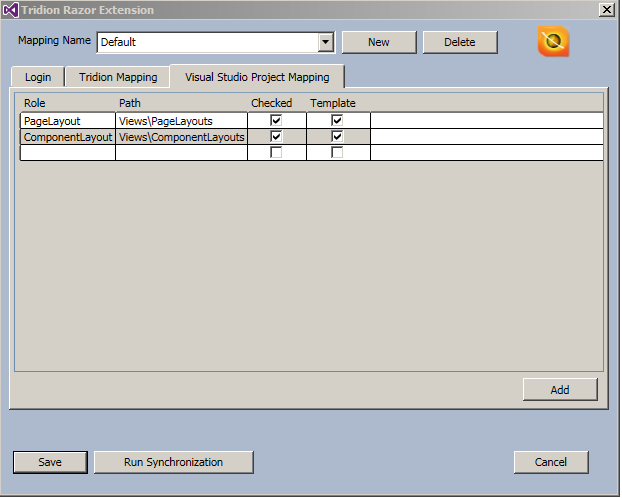

Visual Studio mapping

Select folders from Visual Studio project.

Synchronization

You can run synchronization in two ways:

1. Dialog window – “Run Synchronization”.

Runs synchronization for all the mapped Tridion and project folders.

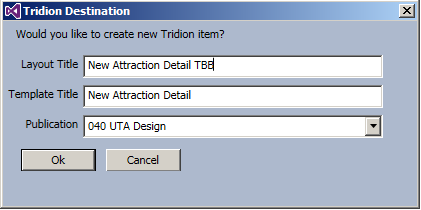

Item exists only in project. The user will be prompted to enter the name of a new Tridion item and select the target publication

Item exists only in Tridion (two-way must be enabled for Tridion folder(s))

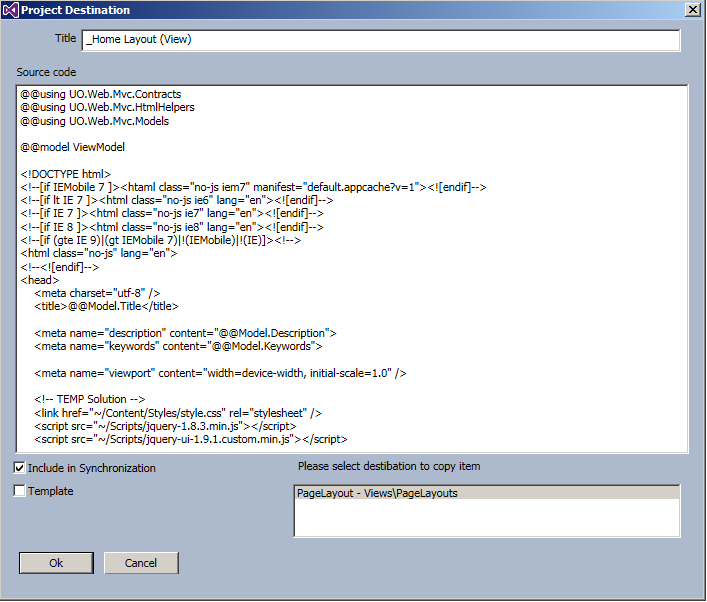

User will be prompted to enter the name of a new project item and select the project folder to place it.

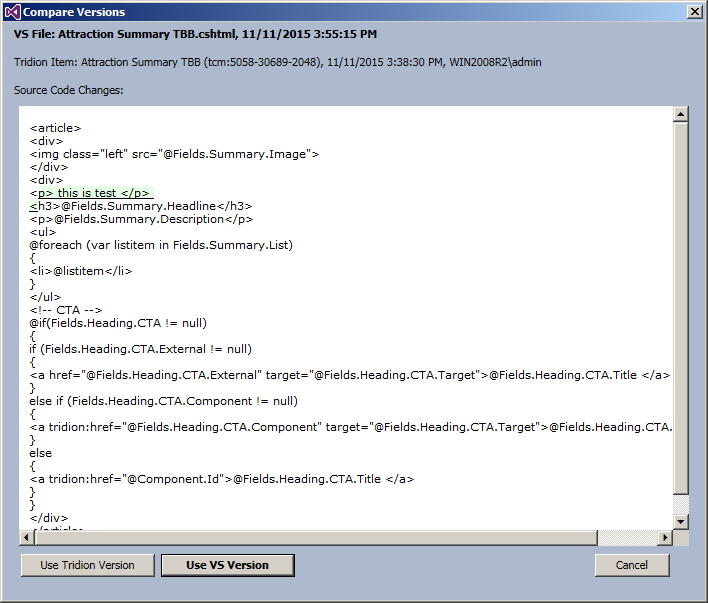

Item exists in both project and Tridion. The application compares dates and suggests the user which version to use.

* It is important to select the proper time zone to have the proper time comparison

The user can make a decision which version to use

* You won’t lose your previous changes. If you synchronize a Tridion item from the project then the new Tridion item version will be created, and you will be able to roll it back in TCM. If your project item is overwritten by a Tridion item then you can use your version control system to roll it back

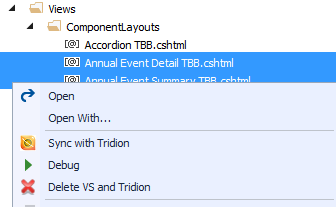

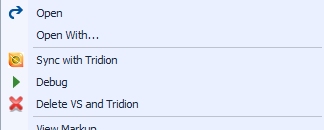

2. Context menu on file(s) or folder

This kind of synchronization will synchronize only selected items.

Automatic creating of component templates

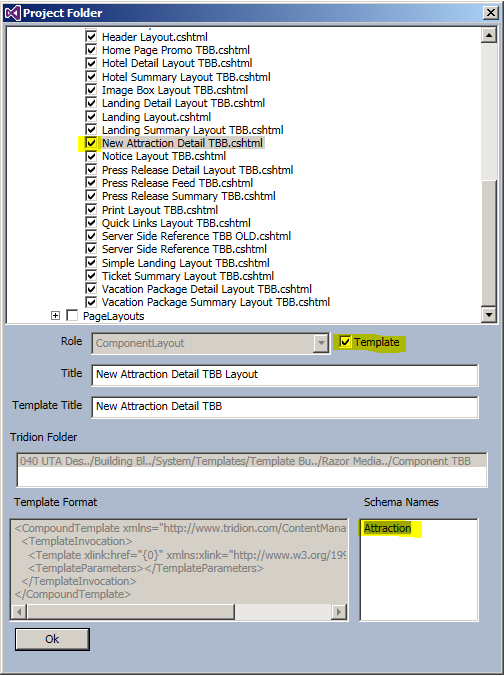

If *.cshtml file was created in Visual Studio, and you want to create component template automatically, please use the next Visual Studio mapping settings:

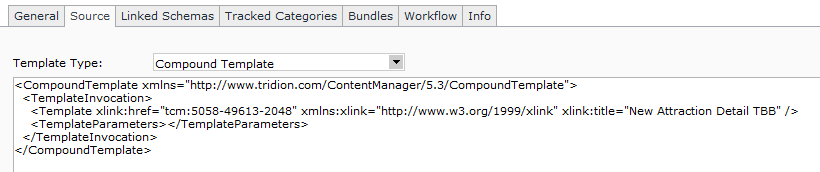

After synchronization is run, you will have template created automatically

Debugging

Before start debugging you need to set configuration for TcmDebugger. Please read Debugging Razor Mediator templates

You can start debugging synchronization in two ways:

• From item context menu

• Press Run from Visual Studio toolbar. Then the latest .cshtml will be run

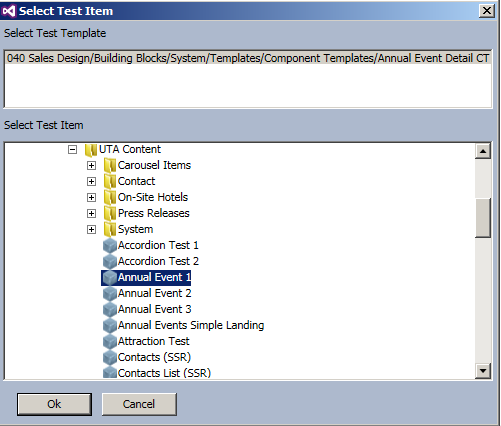

If razor TBB was not debugged before you will be requested to set test component / page and test template that includes current layout

You can use breakpoints

Work with razor helpers

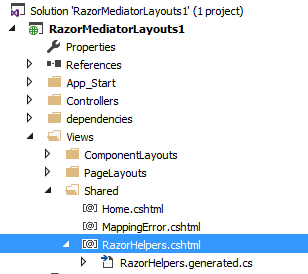

Extension makes analysis of Tridion.ContentManager.config and finds helpers on the file system and makes a copy file in Visual Studio project:

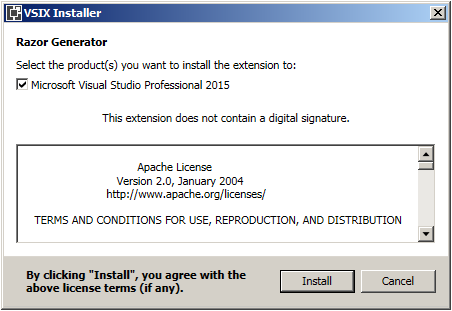

To use this helper methods we need a customized version of Razor Generator

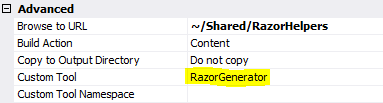

Make sure that helper file is marked with custom tool RazorGenerator

Also make sure that razor file has the next directive on the top. This is a marker that proper code generation is used

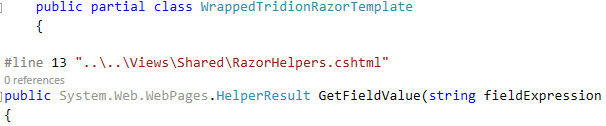

Then you will see file RazorHelpers.generated.cs with the next generated C# code

Since this code is included into base WrappedTridionRazorTemplate class it can be used in any razor file

* If helpers are located in standalone TBB instead of file system and referenced via import directive - just set custom tool RazorGenerator for helper TBB
