How to configure XML file type to apply parser rules AND have embedded content being processed correctly

We have simple XML files with following format:

<?xml version="1.0"?>
<item>
	<name>Example for forum question</name>
	<elements>
		<element name="Meta Title">
			<![CDATA[Dealing with XML]]>
		</element>
		<element name="Meta Description">
			<![CDATA[Sample XML for issue description purpose.]]>
		</element>
		<element name="Headline">
			<![CDATA[How to set XML settings]]>
		</element>
		<element name="Whatever">
			<![CDATA[Some HTML text with <span>tags</span> and&nbsp;other stuff!]]>
		</element>
	</elements>
</item>

Each file has an element with name "Meta Title" and "Meta description". It can have other elements containing text and with different/various names. The CDATA content can contain HTML tags and entitites.

We want:

1. A length restriction on the elements with the name "Meta Title" and "Meta description"

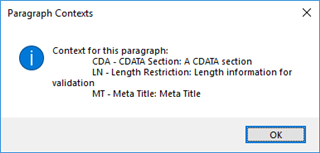

2. Show structure information for the "Meta Title" and "Meta description" text

3. Have the HTML being processed and shown as tags using the HTML 5 embedded content processor

The problem:

We can't find any way to have the structure information for the two meta elements AND HTML tags being processed correctly.

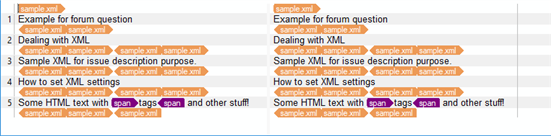

Either the tags are shown correctly but no structure information is available:

This happens with following embedded content settings:

Or the structure information is shown but the HTML is not being processed:

with following embedded content settings:

This is our settings file:

Fullscreen 5415.sampleXML.sdlftsettings.xml Download

<?xml version="1.0" encoding="utf-8"?>
<SettingsBundle>
	<SettingsGroup Id="sampleXML v 1.3.0.0">
		<Setting Id="SnifferNamespaces">True</Setting>
		<Setting Id="SnifferRootElements">True</Setting>
		<Setting Id="SnifferRootElements0">item</Setting>
		<Setting Id="SnifferXPaths">True</Setting>
		<Setting Id="SubContentProcessingFileTypeId">Html Embedded Content 5 2.0.0.0</Setting>
		<Setting Id="SubContentProcessingProcess">True</Setting>
		<Setting Id="Xml_Translate_Rule_2MaximumLength">55</Setting>
		<Setting Id="Xml_Translate_Rule_2XPathSelector">//element[@name='Meta Title']</Setting>
		<Setting Id="Xml_Translate_Rule_1MaximumLength">150</Setting>
		<Setting Id="FileTypeConfiguration_ComponentBuilderId">XML v 1.3.0.0</Setting>
		<Setting Id="FileTypeConfiguration_ProfileData">
			<FileTypeInformation xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.sdl.com/filetypesupport">
				<Description>(Replace with a description of this file type)</Description>
				<Expression>(^[\d\D]*\.[xX][mM][lL]$)</Expression>
				<FileDialogWildcardExpression>*.xml</FileDialogWildcardExpression>
				<FileTypeDefinitionId>sampleXML v 1.3.0.0</FileTypeDefinitionId>
				<FileTypeDocumentName>XML Template Document</FileTypeDocumentName>
				<FileTypeDocumentsName>XML Template Documents</FileTypeDocumentsName>
				<FileTypeName>sample XML</FileTypeName>
			</FileTypeInformation>
		</Setting>
		<Setting Id="DefaultOverridesList">True</Setting>
		<Setting Id="RemoveDefaultOverridesList">True</Setting>
		<Setting Id="Xml_NS_List_">True</Setting>
		<Setting Id="DependencyFileList">True</Setting>
		<Setting Id="SettingSchemaLocation">True</Setting>
		<Setting Id="QuickInsertsList">True</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0ContextType">meta title</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0ContextType">meta description</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0">True</Setting>
		<Setting Id="SubContentStructureInfosList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_">True</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2Advanced">True</Setting>
		<Setting Id="SubContentCDATAOnly">True</Setting>
		<Setting Id="Xml_Translate_Rule_1Advanced">True</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0Description">Meta Description</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayColor">128, 128, 192</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayCode">MT</Setting>
		<Setting Id="Xml_WithinText_Rule_1Advanced">True</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0Description">HTML Text</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayCode">HTM</Setting>
		<Setting Id="Xml_Translate_Rule_1Translate">yes</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayName">Meta Description</Setting>
		<Setting Id="Xml_Translate_Rule_">True</Setting>
		<Setting Id="Xml_Translate_Rule_2Translate">yes</Setting>
		<Setting Id="Xml_Translate_Rule_1IsSoftBreak">True</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0">True</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayColor">64, 128, 128</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0ContextType">meta description</Setting>
		<Setting Id="Xml_Translate_Rule_0Context">True</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_Translate_Rule_1Context">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1MaximumLength">150</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0Description">Meta Description</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0ContextType">html text</Setting>
		<Setting Id="Xml_Translate_Rule_1">True</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0">True</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList">True</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInheritFromParent">False</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayColor" />
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayColor">128, 128, 192</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0Description">Meta Title</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0Description">Meta Title</Setting>
		<Setting Id="Xml_WithinText_Rule_1XPathSelector">//element[@name='Meta Description']</Setting>
		<Setting Id="Xml_WithinText_Rule_2Context">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2IsSoftBreak">True</Setting>
		<Setting Id="Xml_Translate_Rule_1XPathSelector">//element[@name='Meta Description']</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0ContextType">html text</Setting>
		<Setting Id="Xml_Translate_Rule_2">True</Setting>
		<Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayName">Meta Title</Setting>
		<Setting Id="Xml_Translate_Rule_2IsSoftBreak">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayCode">MD</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayName">Meta Description</Setting>
		<Setting Id="Xml_WithinText_Rule_1Context">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList0">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1IsSoftBreak">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2XPathSelector">//element[@name='Meta Title']</Setting>
		<Setting Id="Xml_WithinText_Rule_1">True</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0">True</Setting>
		<Setting Id="Xml_Translate_Rule_2Context">True</Setting>
		<Setting Id="Xml_Translate_Rule_0">True</Setting>
		<Setting Id="Xml_WithinText_Rule_0XPathSelector">//element[@name!='Meta Description' and @name!='Meta Title']</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayColor" />
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0Description">HTML Text</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayCode">HTM</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayName">HTML Text</Setting>
		<Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayCode">MD</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0ContextType">meta title</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayName">Meta Title</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayCode">MT</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayColor">64, 128, 128</Setting>
		<Setting Id="Xml_WithinText_Rule_2">True</Setting>
		<Setting Id="Xml_WithinText_Rule_1CtxInfoList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_2MaximumLength">55</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayName">HTML Text</Setting>
		<Setting Id="Xml_Translate_Rule_0Translate">yes</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxMustUseDisplayName">True</Setting>
		<Setting Id="Xml_Translate_Rule_0CtxInfoList0">True</Setting>
		<Setting Id="Xml_Translate_Rule_0XPathSelector">//element[@name!='Meta Description' and @name!='Meta Title']</Setting>
		<Setting Id="Xml_Translate_Rule_2Advanced">True</Setting>
		<Setting Id="SubContentStructureInfosList0">HTML Text</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInfoList">True</Setting>
		<Setting Id="Xml_WithinText_Rule_0">True</Setting>
		<Setting Id="Xml_WithinText_Rule_0CtxInheritFromParent">False</Setting>
		<Setting Id="Xml_WithinText_Rule_0Context">True</Setting>
	</SettingsGroup>
</SettingsBundle>

Is there something wrong with these settings?

Can't we have both, HTML being processed and structure information for the text within the meta elements?

Translate

Rate translation

Suggest better translation

Moderator UI

Thread Subject & Description
How to configure XML file type to apply parser rules AND have embedded content being processed correctly We have simple XML files with following format: .code-editor .code-editor-heading{border-top:1px solid #e7e6e8;border-left:1px solid #e7e6e8;border-right:1px solid #e7e6e8;background-color:#fafafa;border-radius:3px 3px 0 0;font-size:12.6px;display:flex;justify-content:space-between;align-items:center;overflow:hidden}.code-editor .code-editor-heading .icon{width:32px;height:32px;display:block;overflow:hidden;text-indent:-3000em;background-repeat:no-repeat;background-size:80%;background-position:center}.code-editor .code-editor-heading .fs{background-image:url('https://community.rws.com/cfs-filesystemfile/__key/defaultwidgets/547b4cbb4efb4c3d83533f8f35fb4b7b-1a84591e31034fac832d29ed8584666c/fullscreen.svg?_=637923381702208350')}.code-editor .code-editor-heading .dl{background-image:url('https://community.rws.com/cfs-filesystemfile/__key/defaultwidgets/547b4cbb4efb4c3d83533f8f35fb4b7b-1a84591e31034fac832d29ed8584666c/download.svg?_=637923381702118315')}.code-editor .code-editor-heading .filename{padding:10px;display:block;white-space:nowrap;overflow:hidden;text-overflow:ellipsis}.code-editor .code-editor-heading a{color:#271a32}.code-editor .code-editor-heading a:hover{color:#3e016f} https://community.rws.com/# https://community.rws.com/cfs-filesystemfile/__key/communityserver-discussions-components-files/90/3348.sample.xml?_=636543851738964626 https://community.rws.com/cfs-filesystemfile/__key/communityserver-discussions-components-files/90/3348.sample.xml?_=636543851738964626 <?xml version="1.0"?> <item> <name>Example for forum question</name> <elements> <element name="Meta Title"> <![CDATA[Dealing with XML]]> </element> <element name="Meta Description"> <![CDATA[Sample XML for issue description purpose.]]> </element> <element name="Headline"> <![CDATA[How to set XML settings]]> </element> <element name="Whatever"> <![CDATA[Some HTML text with <span>tags</span> and other stuff!]]> </element> </elements> </item> jQuery(function(j){ var fullScreenToggle = j('#fragment-1a84591e31034fac832d29ed8584666c1628647904_code-editor-fs'); var codeEditor = j('#fragment-1a84591e31034fac832d29ed8584666c1628647904_code-editor'); fullScreenToggle.on('click', function(){ if (codeEditor.evolutionCodeEditor('fullscreen')) { codeEditor.evolutionCodeEditor('fullscreen', false); } else { codeEditor.evolutionCodeEditor('fullscreen', true); } return false; }); }); Each file has an element with name "Meta Title" and "Meta description". It can have other elements containing text and with different/various names. The CDATA content can contain HTML tags and entitites. We want: 1. A length restriction on the elements with the name "Meta Title" and "Meta description" 2. Show structure information for the "Meta Title" and "Meta description" text 3. Have the HTML being processed and shown as tags using the HTML 5 embedded content processor The problem: We can't find any way to have the structure information for the two meta elements AND HTML tags being processed correctly. Either the tags are shown correctly but no structure information is available: https://community.rws.com/cfs-file/__key/communityserver-discussions-components-files/90/3348.samplexml1.png This happens with following embedded content settings: https://community.rws.com/cfs-file/__key/communityserver-discussions-components-files/90/6153.pastedimage1518787965711v4.png Or the structure information is shown but the HTML is not being processed: https://community.rws.com/cfs-file/__key/communityserver-discussions-components-files/90/6153.samplexml2.png https://community.rws.com/cfs-file/__key/communityserver-discussions-components-files/90/5415.pastedimage1518787765442v1.png with following embedded content settings: https://community.rws.com/cfs-file/__key/communityserver-discussions-components-files/90/5415.pastedimage1518788012542v5.png This is our settings file: .code-editor .code-editor-heading{border-top:1px solid #e7e6e8;border-left:1px solid #e7e6e8;border-right:1px solid #e7e6e8;background-color:#fafafa;border-radius:3px 3px 0 0;font-size:12.6px;display:flex;justify-content:space-between;align-items:center;overflow:hidden}.code-editor .code-editor-heading .icon{width:32px;height:32px;display:block;overflow:hidden;text-indent:-3000em;background-repeat:no-repeat;background-size:80%;background-position:center}.code-editor .code-editor-heading .fs{background-image:url('https://community.rws.com/cfs-filesystemfile/__key/defaultwidgets/547b4cbb4efb4c3d83533f8f35fb4b7b-1a84591e31034fac832d29ed8584666c/fullscreen.svg?_=637923381702208350')}.code-editor .code-editor-heading .dl{background-image:url('https://community.rws.com/cfs-filesystemfile/__key/defaultwidgets/547b4cbb4efb4c3d83533f8f35fb4b7b-1a84591e31034fac832d29ed8584666c/download.svg?_=637923381702118315')}.code-editor .code-editor-heading .filename{padding:10px;display:block;white-space:nowrap;overflow:hidden;text-overflow:ellipsis}.code-editor .code-editor-heading a{color:#271a32}.code-editor .code-editor-heading a:hover{color:#3e016f} https://community.rws.com/# https://community.rws.com/cfs-filesystemfile/__key/communityserver-discussions-components-files/90/5415.sampleXML.sdlftsettings.xml?_=636543851739432619 https://community.rws.com/cfs-filesystemfile/__key/communityserver-discussions-components-files/90/5415.sampleXML.sdlftsettings.xml?_=636543851739432619 <?xml version="1.0" encoding="utf-8"?> <SettingsBundle> <SettingsGroup Id="sampleXML v 1.3.0.0"> <Setting Id="SnifferNamespaces">True</Setting> <Setting Id="SnifferRootElements">True</Setting> <Setting Id="SnifferRootElements0">item</Setting> <Setting Id="SnifferXPaths">True</Setting> <Setting Id="SubContentProcessingFileTypeId">Html Embedded Content 5 2.0.0.0</Setting> <Setting Id="SubContentProcessingProcess">True</Setting> <Setting Id="Xml_Translate_Rule_2MaximumLength">55</Setting> <Setting Id="Xml_Translate_Rule_2XPathSelector">//element[@name='Meta Title']</Setting> <Setting Id="Xml_Translate_Rule_1MaximumLength">150</Setting> <Setting Id="FileTypeConfiguration_ComponentBuilderId">XML v 1.3.0.0</Setting> <Setting Id="FileTypeConfiguration_ProfileData"> <FileTypeInformation xmlns:i="http://www.w3.org/2001/XMLSchema-instance" xmlns="http://www.sdl.com/filetypesupport"> <Description>(Replace with a description of this file type)</Description> <Expression>(^[\d\D]*\.[xX][mM][lL]$)</Expression> <FileDialogWildcardExpression>*.xml</FileDialogWildcardExpression> <FileTypeDefinitionId>sampleXML v 1.3.0.0</FileTypeDefinitionId> <FileTypeDocumentName>XML Template Document</FileTypeDocumentName> <FileTypeDocumentsName>XML Template Documents</FileTypeDocumentsName> <FileTypeName>sample XML</FileTypeName> </FileTypeInformation> </Setting> <Setting Id="DefaultOverridesList">True</Setting> <Setting Id="RemoveDefaultOverridesList">True</Setting> <Setting Id="Xml_NS_List_">True</Setting> <Setting Id="DependencyFileList">True</Setting> <Setting Id="SettingSchemaLocation">True</Setting> <Setting Id="QuickInsertsList">True</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0ContextType">meta title</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0ContextType">meta description</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0">True</Setting> <Setting Id="SubContentStructureInfosList">True</Setting> <Setting Id="Xml_WithinText_Rule_">True</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList">True</Setting> <Setting Id="Xml_WithinText_Rule_2Advanced">True</Setting> <Setting Id="SubContentCDATAOnly">True</Setting> <Setting Id="Xml_Translate_Rule_1Advanced">True</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList">True</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0Description">Meta Description</Setting> <Setting Id="Xml_WithinText_Rule_1CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayColor">128, 128, 192</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayCode">MT</Setting> <Setting Id="Xml_WithinText_Rule_1Advanced">True</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0Description">HTML Text</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayCode">HTM</Setting> <Setting Id="Xml_Translate_Rule_1Translate">yes</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayName">Meta Description</Setting> <Setting Id="Xml_Translate_Rule_">True</Setting> <Setting Id="Xml_Translate_Rule_2Translate">yes</Setting> <Setting Id="Xml_Translate_Rule_1IsSoftBreak">True</Setting> <Setting Id="Xml_Translate_Rule_1CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0">True</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayColor">64, 128, 128</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0ContextType">meta description</Setting> <Setting Id="Xml_Translate_Rule_0Context">True</Setting> <Setting Id="Xml_Translate_Rule_2CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_Translate_Rule_1Context">True</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList">True</Setting> <Setting Id="Xml_WithinText_Rule_1MaximumLength">150</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0Description">Meta Description</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0ContextType">html text</Setting> <Setting Id="Xml_Translate_Rule_1">True</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0">True</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList">True</Setting> <Setting Id="Xml_Translate_Rule_0CtxInheritFromParent">False</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayColor" /> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayColor">128, 128, 192</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0Description">Meta Title</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0Description">Meta Title</Setting> <Setting Id="Xml_WithinText_Rule_1XPathSelector">//element[@name='Meta Description']</Setting> <Setting Id="Xml_WithinText_Rule_2Context">True</Setting> <Setting Id="Xml_WithinText_Rule_2IsSoftBreak">True</Setting> <Setting Id="Xml_Translate_Rule_1XPathSelector">//element[@name='Meta Description']</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0ContextType">html text</Setting> <Setting Id="Xml_Translate_Rule_2">True</Setting> <Setting Id="Xml_Translate_Rule_2CtxInfoList0DisplayName">Meta Title</Setting> <Setting Id="Xml_Translate_Rule_2IsSoftBreak">True</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayCode">MD</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0DisplayName">Meta Description</Setting> <Setting Id="Xml_WithinText_Rule_1Context">True</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList0">True</Setting> <Setting Id="Xml_WithinText_Rule_1IsSoftBreak">True</Setting> <Setting Id="Xml_WithinText_Rule_2XPathSelector">//element[@name='Meta Title']</Setting> <Setting Id="Xml_WithinText_Rule_1">True</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0">True</Setting> <Setting Id="Xml_Translate_Rule_2Context">True</Setting> <Setting Id="Xml_Translate_Rule_0">True</Setting> <Setting Id="Xml_WithinText_Rule_0XPathSelector">//element[@name!='Meta Description' and @name!='Meta Title']</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayColor" /> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0Description">HTML Text</Setting> <Setting Id="Xml_WithinText_Rule_0CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayCode">HTM</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList0DisplayName">HTML Text</Setting> <Setting Id="Xml_Translate_Rule_1CtxInfoList0DisplayCode">MD</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0ContextType">meta title</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayName">Meta Title</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayCode">MT</Setting> <Setting Id="Xml_WithinText_Rule_2CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_WithinText_Rule_2CtxInfoList0DisplayColor">64, 128, 128</Setting> <Setting Id="Xml_WithinText_Rule_2">True</Setting> <Setting Id="Xml_WithinText_Rule_1CtxInfoList">True</Setting> <Setting Id="Xml_WithinText_Rule_2MaximumLength">55</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0DisplayName">HTML Text</Setting> <Setting Id="Xml_Translate_Rule_0Translate">yes</Setting> <Setting Id="Xml_Translate_Rule_0CtxMustUseDisplayName">True</Setting> <Setting Id="Xml_Translate_Rule_0CtxInfoList0">True</Setting> <Setting Id="Xml_Translate_Rule_0XPathSelector">//element[@name!='Meta Description' and @name!='Meta Title']</Setting> <Setting Id="Xml_Translate_Rule_2Advanced">True</Setting> <Setting Id="SubContentStructureInfosList0">HTML Text</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInfoList">True</Setting> <Setting Id="Xml_WithinText_Rule_0">True</Setting> <Setting Id="Xml_WithinText_Rule_0CtxInheritFromParent">False</Setting> <Setting Id="Xml_WithinText_Rule_0Context">True</Setting> </SettingsGroup> </SettingsBundle> jQuery(function(j){ var fullScreenToggle = j('#fragment-1a84591e31034fac832d29ed8584666c483123659_code-editor-fs'); var codeEditor = j('#fragment-1a84591e31034fac832d29ed8584666c483123659_code-editor'); fullScreenToggle.on('click', function(){ if (codeEditor.evolutionCodeEditor('fullscreen')) { codeEditor.evolutionCodeEditor('fullscreen', false); } else { codeEditor.evolutionCodeEditor('fullscreen', true); } return false; }); }); Is there something wrong with these settings? Can't we have both, HTML being processed and structure information for the text within the meta elements?
Get AI Suggestion

AI Reply

Accept answer Reject Answer

0 Paul Filkin over 8 years ago

Hi Heinrich Muralt ,

I'm afraid not... at least I don't know of one. It's either legacy and you create all the rules and can set your structure, or embedded html filetype and lose the structure.

Paul Filkin | RWS

Design your own training!
You've done the courses and still need to go a little further, or still not clear?
Tell us what you need in our Community Solutions Hub
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Reject Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
0 Evzen Polenka over 8 years ago in reply to Paul Filkin

How about using the second method (so that the structure is shown) and then the Cleanup Tasks plugin to convert the "plain text tags" to real tags?
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
0 Paul Filkin over 8 years ago in reply to Evzen Polenka

Good idea... you've become a fan of that tool!

Paul Filkin | RWS

Design your own training!
You've done the courses and still need to go a little further, or still not clear?
Tell us what you need in our Community Solutions Hub
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
0 Evzen Polenka over 8 years ago in reply to Paul Filkin

Hmmm, actually not ;-)
Studio's inability to use such plugins on SOURCE language and inability to really COMPLETELY automate the entire process without ANY human intervention make it not really useful for my purposes... repeating such manual tasks on 20+ target languages is not for me. Such repeated routine stuff should be done by MACHINES, not humans. It's 2018, not 1818 or 1918...
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
0 Heinrich Muralt over 8 years ago in reply to Paul Filkin

Thanks guys!

We are using legacy XML file filter now and created all the rules for the html content. Unfortunately entities are not converted, so we also had to create rules for the entities. So it's kind of working.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
0 Evzen Polenka over 8 years ago in reply to Heinrich Muralt

Entities are evil. I would use a little script which simply reads all XMLs e.g. using MSXML object and re-saves them. This automatically converts all entities to real characters.
Cancel
Vote Up 0 Vote Down

Sign in to reply

Verify Answer

Cancel

Share
Documentation Survey: help us offer you better documentation! Translate
