Miranda Sambidge

Thanks for sending the question into here... more space and time to answer it!  But first note that this isn't the best way to prepare XLIFF and if you have a willing client they might be prepared to listen and follow the intent of the XLIFF specification to avoid these sort of workarounds.

If they won't you basically have two options:

1. use the embedded content filter in the XLIFF filetype
2. treat the file as if it was monolingual and handle it using a custom XML filetype

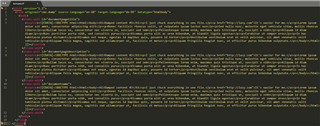

So I mocked up a file like this:

In Studio when I open it I see this which is probably reprepsentative of what you are seeing:

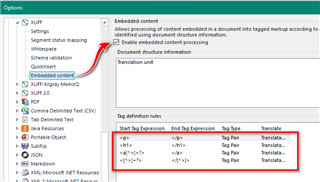

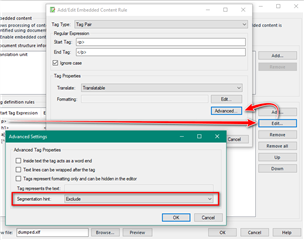

It's all in just three segments, one for each of the Translation Units in my file.  To solve this I need to use the embedded content option and add a few rules to pick up the tags and exclude them to force the segmentation:

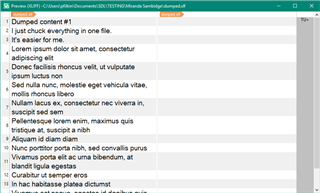

Now when I open the XLIFF I get this:

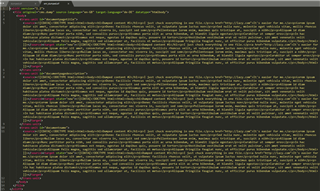

Depending on the complexity of the content in your CDATA section (which is what I believe you have) this is probably the simplest solution.  But if not then just create a monolingual filetype and handle it that way.  In my example there is no target element in the XLIFF yet, so I just opened it with Studio, copied source to target and saved the target file.  Now I have this one:

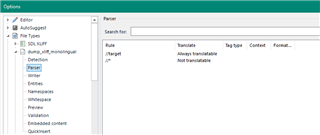

I can now create a custom XML filetype to translate the target element alone and use the embedded HTML filetype to handle the markup and segmentation.  So my filetype has two simple rules:

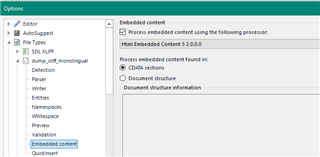

The embedded content processor is set up like this:

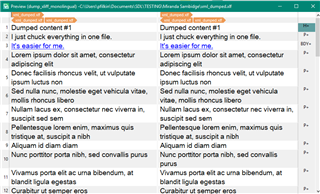

The result is this:

I didn't dwell on how to create a custom XML filetype but if you need more help with that this may help:

https://multifarious.filkin.com/2014/06/01/custom-xml/

I also put my sample here so you can have a play... that may help too:

dumped_XLIFF.zip

Miranda Sambidge said:

We have received an XLF from a client containing really long segments - how can we re-segment these long segments

You actually SHOULD NOT "re-segment" anything, this MUST be done at the client's side in the CMS export routine!
This export is simply INCORRECTLY created.

Putting entire HTML code into a CDATA structure in XLIFF "envelope" is plainly WRONG and only confirms that the creator of the export routine has absolutely no clue about proper XLIFF format.

Such content should be thrown right back at the client with a reference to XLIFF specification and "No, try again" message.

And Paul should actually clearly state in all such his answers that this is a WORKAROUND (for the f*cked-up export), not a solution.

Evzen Polenka said:

And Paul should actually clearly state in all such his answers that this is a WORKAROUND (for the f*cked-up export), not a solution.

Yes... I probably should.  But sometimes it's just more important to be able to solve the problem because you can't always explain this to the client and even if you do they might not listen.  This happens so often I used this as an opportunity to create a post I can refer to in the future.

I'll edit to to reflect your view.

Thanks Paul!
