Can't change font size in Translation Results window (Trados Studio 2024)

Peter Peters

Hi,
I'm using Trados Studio 2024 (version 18.0.2.3255) and while I was able to enlarge the font size in the editor window by manually editing the UserSettings.xml file, there seems to be no way to increase the font size in the Translation Results pane (the TM window below or beside the editor).

Here's what I did for the editor:

xml
KopierenBearbeiten
<Setting Id="StandardSource_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="22" MaxFontSize="22" /> </Setting> <Setting Id="StandardTarget_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="22" MaxFontSize="22" /> </Setting>

That worked well for the segment editor – but it has no effect on the TM results panel.
I also tried increasing the font size via:

Options → Translation Memory View → Font Size = 30 pt

But this only affects TM maintenance mode – not the Translation Results pane in the editor.

I’m working on a high-resolution screen, and this part of the interface is simply too small to read comfortably, even with Windows scaling or DPI tweaks.

QuestionFeature request / question:

  • Is there a way to enlarge the font size in the Translation Results window?

  • If not, could SDL/RWS please consider adding a zoom or font-size option for that panel?

Thanks in advance!
emoji
Rate translation
×
Suggest better translation
×
Moderator UI
×
  • Get AI Suggestion
Parents Reply Children
  • 0 in reply to Peter Peters

    Screenshot of Trados Studio on a 5160x1440 pixels 49-inch display showing a bilingual text comparison. The left column contains German text, and the right column contains Polish translations.

    This is how it looks on 5160 × 1440 pixels 49"

    _________________________________________________________

    When asking for help here, please be as accurate as possible. Please always remember to give the exact version of product used and all possible error messages received. The better you describe your problem, the better help you will get.

    Want to learn more about Trados Studio? Visit the Community Hub. Have a good idea to make Trados Studio better? Publish it here.

    emoji


    Generated Image Alt-Text
    [edited by: RWS Community AI at 8:27 AM (GMT 1) on 5 Jun 2025]
  • 0 in reply to Jerzy Czopik

    Hello

    I am not sure, but I think that there has been a misunderstanding right from the start! I believe that Peter is interested in increasind the font size in the two TM/AT result cells (with the colour codes) generally situated above the Editor segments to be translated.

    If that is so, no solution suggested so far solves his issue.

    Best regards.

    Gérard
    emoji
  • 0 in reply to Gérard LAMBERT

    Hello Gérard

    Yes, you are right. That is exactly my problem. But:

    Everything was working fine until yesterday morning when I launched Trados. It started with the welcome screen that usually appears after an update or new installation – even though I didn’t trigger any update myself, and the update setting in Trados is set to "Manual".

    After that, the font size in both the Editor and the Translation Results window became extremely small. No matter what I changed under Options > Editor > Font Adaptation or Options > Translation Memory View (even setting the font size to 30), nothing changed – even after restarting Trados.

    I was eventually able to manually adjust the font size in the Editor by editing the UserSettings.xml file.

    In the same file, I also added the following section under DisplaySettings:

    xml
    Code kopieren
    <SettingsGroup Id="DisplaySettings"> <Setting Id="StandardSource_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="22" MaxFontSize="22" /> </Setting> <Setting Id="StandardTarget_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="22" MaxFontSize="22" /> </Setting> <Setting Id="TMMaintenanceSource_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="30" MaxFontSize="30" /> </Setting> <Setting Id="TMMaintenanceTarget_FontSizeSettings"> <FontSizeSettingsGroup AdaptFontSizes="True" MinFontSize="30" MaxFontSize="30" /> </Setting> </SettingsGroup>

    Unfortunately, these changes had no effect on the font size in the Translation Results window.
    emoji
  • 0 in reply to Peter Peters

    Hi again  !

    What puzzles me now is this automatic Studio 24 update, believed to be the root of your present problem. Although I am still with Studio 2022, I do know that the 18.0.2.3255 version has been available for some weeks/months now, so, if you discarded the automated updates in your Studio settings, how is it that:

    • you were updated without moving a finger?
    • it happened so late?

    I know: more thinking which does not bring any solution!

    Gérard

    P.S.: Aren't you supposed to be slleping at this time of the day?Grinning
    emoji
  • 0 in reply to Gérard LAMBERT

    I am a German living in South America and was waked up to serve a client who sent me an  email yesterday late evening.

    Yes it started yesterday in the same way as new installed or updated while I worked with Trados all the time before without any problem.
    emoji
  • 0 in reply to Peter Peters



    The mentioned part of the TM results window is NOT a part of the editor and thus is not influenced by any of the settings available to the user. This is part of the general GUI. There have been huge changes to the editor in all past 2024 editions, so this is the reason for the change in the view. Unfortunately, to my knowledge there is no way to influence this and many other GUI fonts. Developers are aware of this, but I do not know when this might be solved. Same problem applies to auto suggest hits or to the AI assistant. All fonts are far too small for screens with resolution higher than Full HD. In my case on the laptop with 13" and 3840 × 2200 pixel the text there is next to illegible...

    _________________________________________________________

    When asking for help here, please be as accurate as possible. Please always remember to give the exact version of product used and all possible error messages received. The better you describe your problem, the better help you will get.

    Want to learn more about Trados Studio? Visit the Community Hub. Have a good idea to make Trados Studio better? Publish it here.

    emoji
  • 0 in reply to Jerzy Czopik

    All I can tell you that I could change it easily under Options > Editor > Font Adaptation or Options > Translation Memory View before yesterday morning

    Looking at my other computer with the same Trados version and build (18.0.2.3255), it appears that the editor and the TM field use the same font size.

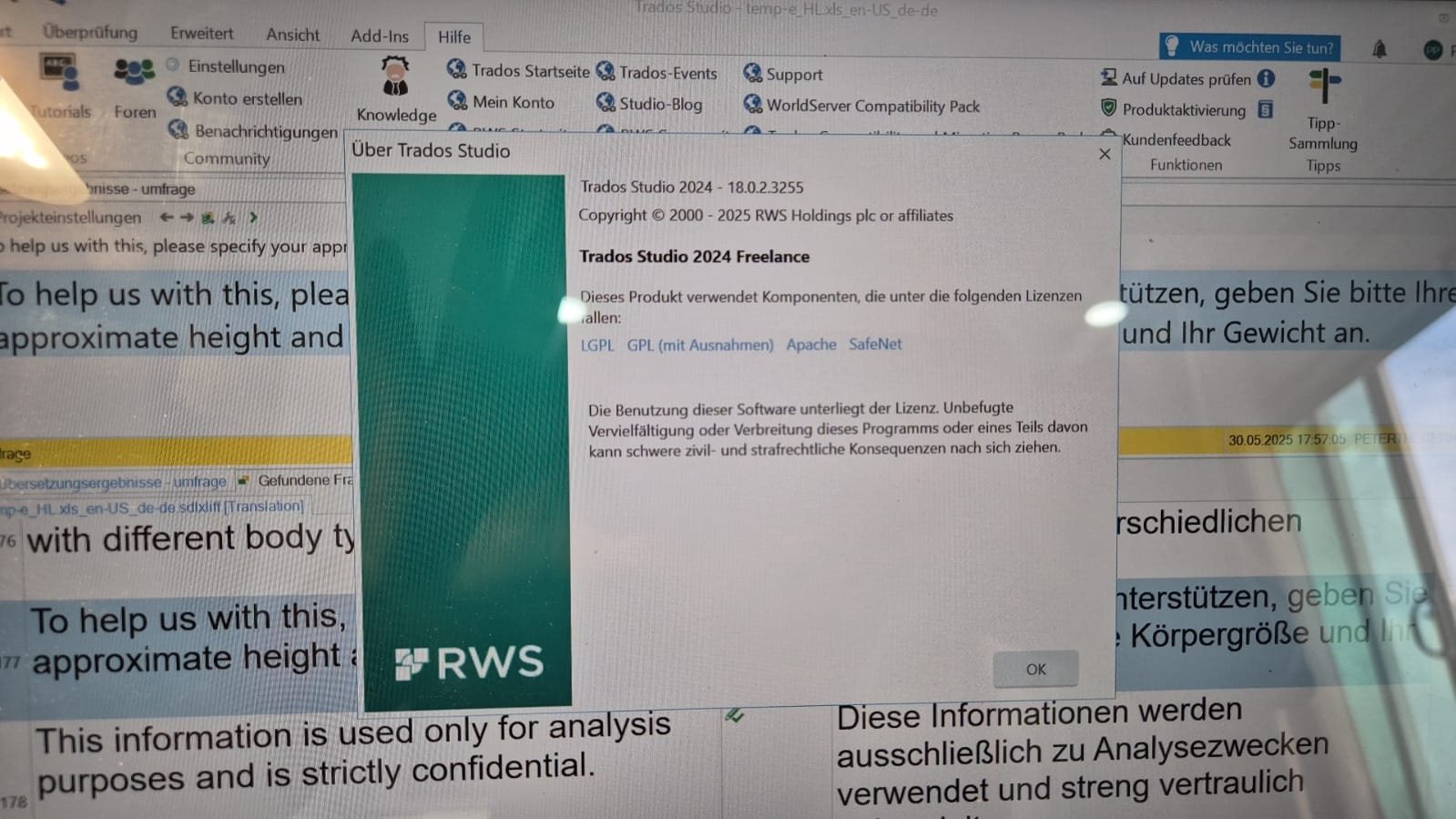

    Screenshot of Trados Studio 2024 About window showing version 18.0.2.3255, license details, and copyright information in German.
