Could you pleas:

- state the segmentation rule you applied

- post a screen capture of the unwanted result

- state file extension of the source file

- insert part of your source file

that would be great.

Schema ST4 file (XML)

All I really want to do is render the br tag external so that Studio creates a segment after the br/

We use a lot of tables and the various sentences are typically separated with the br tag.

Is that enough info?

Thanks

Eric and Andrea

Close!

Could you please copy and paste the text regarding your screenshot?

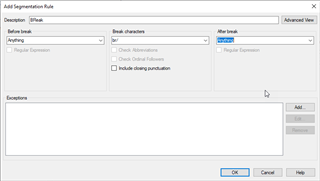

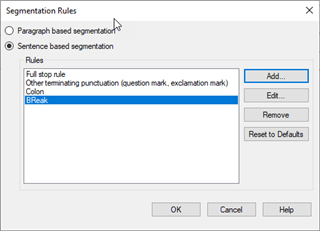

I want to add a soft break to the segmentation rules. The break tag in 2007 is <br/>.

Segment 1 and 2 belong together and 3-9 are a segment. Now were split up after I added the br/ tag.

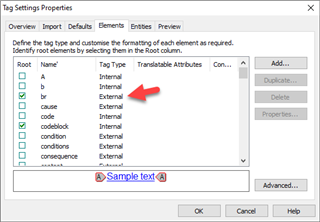

Why there? Adapt this in the tag settings in SchemaST4 file type. This will be much easier.

And how???

Should be very simple:

Open the settings in your project template, go to file types, select Schema ST4, chose parser rules:

Now change tag type to "structure" or go to advanced and select "exclude" for the segmentation hint. I am not sure, which one will work better. I suppose changing to structure will work always. This is good, if you use br between sentences and not mid-sentence.

Hi Jerzy,

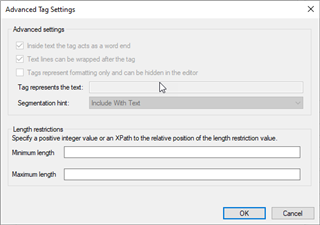

 It appears the segmentation hint is disabled....

Do I change it to not translatable?

Non-translatable or translatable does not matter here, it is a placeholder. And if the tag is structure, the segmentation hint does not apply—in this case the tag is simply always excluded from trext.
